EUROLITE NEBULA MADRIX

MADRIX NEBULA
USB and Artnet interface to control pixels of LED strips, LED stripes, and LED tape

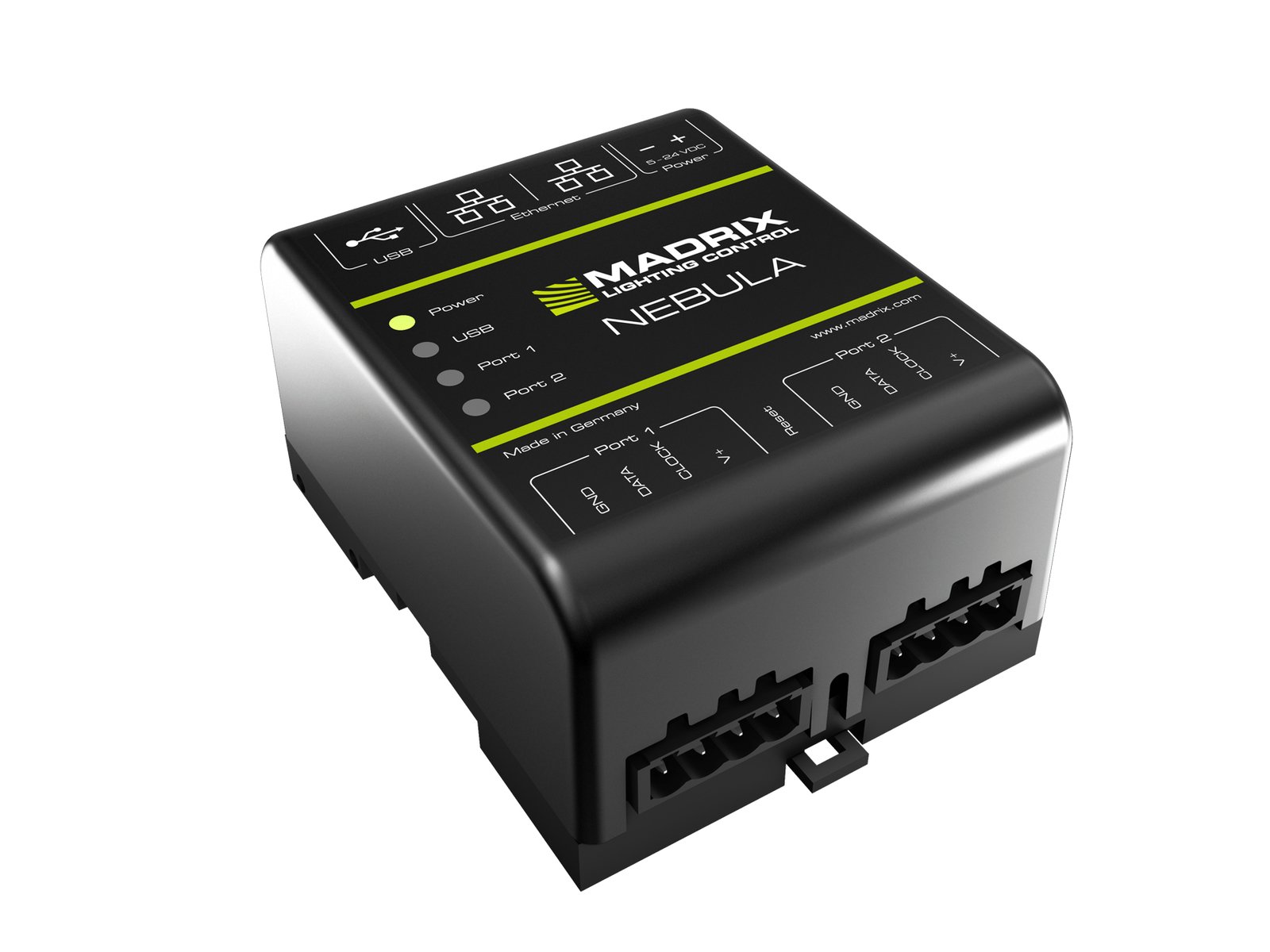

MADRIX NEBULA is a hardware interface to control your digital LED strips, LED stripes, and LED tape
Supports a wide range of LEDs: APA101 / APA102 / APA104 / APA106 / GS8207 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6120 / P9883 / SJ1221 / SK6812 / SK6822 / SM16703 / SM16716 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS2903 / UCS512B3 / UCS8904 / UCS9812S / WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing (As of March 2019)
Additional LED types will be supported with future firmware updates
Drives up to 1360 RGB pixels (8 DMX universes / 4096 DMX Channels / 4096 single-color pixels / 1024 RGBW pixels) distributed equally over 2 ports
Supports a signal frequency of up to 24 MHz
The output protocol can be set separately for each of the 2 ports
Directly connects to the LEDs via 4-pin, pluggable screw terminals
Provides flexible power options: over USB (5 V) or via screw terminal (5 V to 24 V / 12 A) as well as routing through to LEDs with up to 6 A maximum load per port with various options on how to connect LEDs, power, and MADRIX NEBULA
Receives data over Ethernet network (Art-Net and/or Streaming ACN)
Can also be used as MADRIX USB interface
Works great with the MADRIX Software (sold separately) with quick and easy installation
Sync Mode: MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
Complies with the official protocol specifications and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions
Automatic HTP merging for two Ethernet sources
2 Ethernet ports with daisy-chain support for the data connection without using a separate network switch or router
Useful settings for channels per universe, channel offset, channel order, and output in case of network connection loss, and more
9 status LEDs, which can be turned off
Built-in web page for simple on-device configuration
Can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets
Non-conductive enclosure with IP20 and UL94 V-O flammability rating
Ready within seconds after startup
Recommended for any small or large project
Multiple devices can be used together without problems
The firmware can be updated for future features
Quick start guide / technical manual available in English and German
User manuals also available at help.madrix.com
Made in Germany
More information available at www.madrix.com
Can transmit up to 4096 DMX channels
The device is cooled by passive convection
Made in Germany
